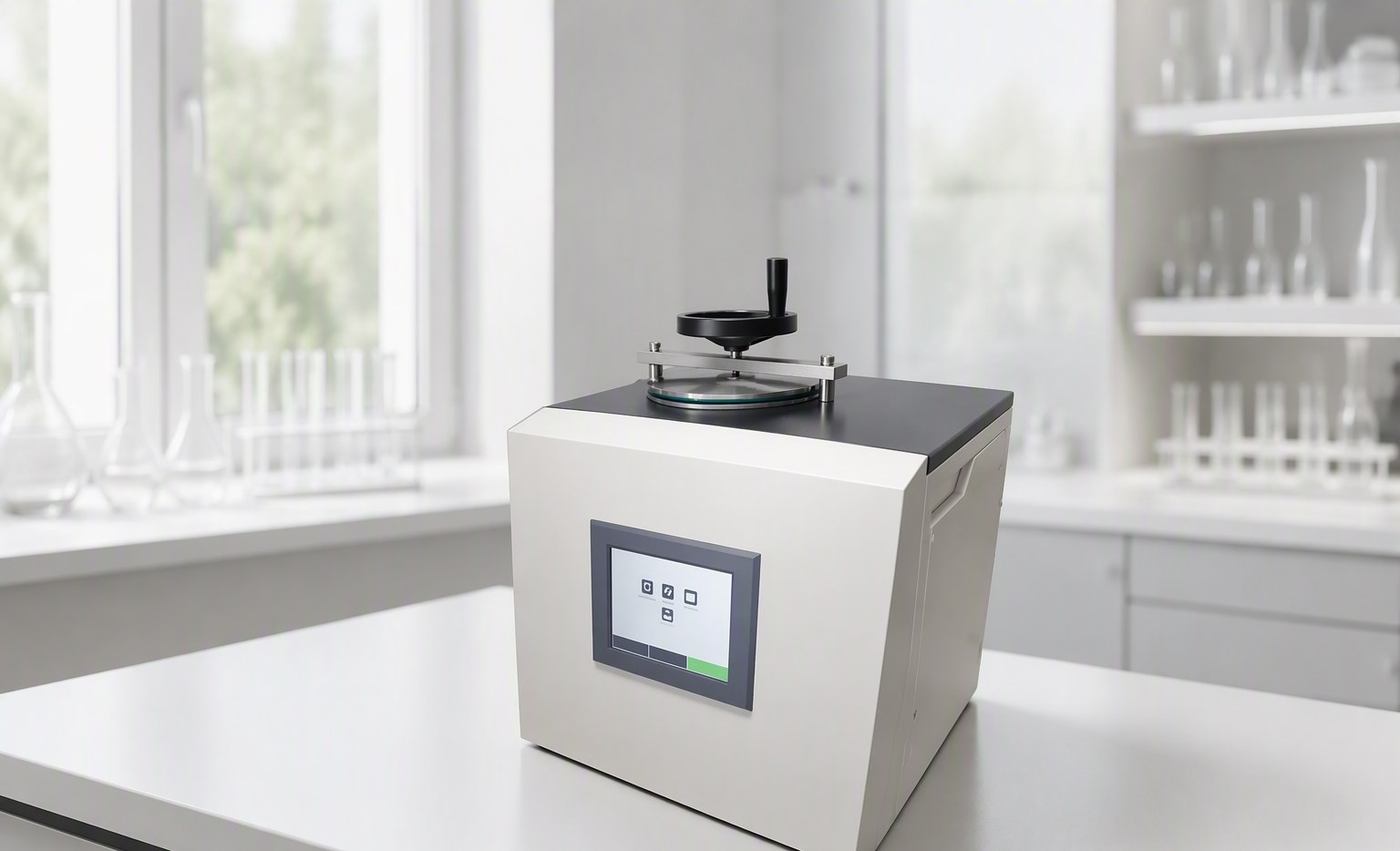

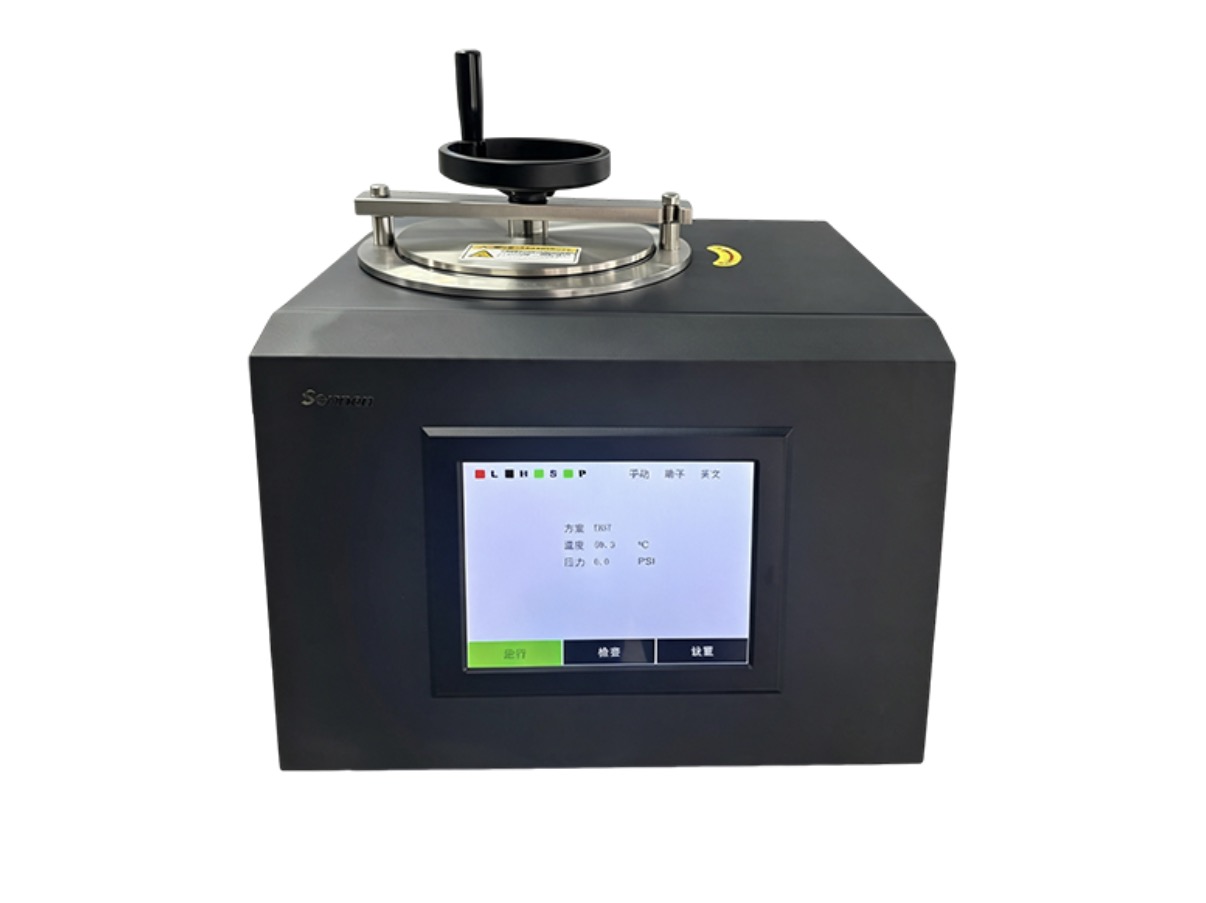

The F22 fully automated filter-bag fiber analyzer replaces the crucible extraction method, eliminating its drawbacks: excessive labor and time, poor temperature control, residue loss, and safety risks for operators. For batch determination it delivers high efficiency, stable results, and lower reagent consumption. Its high-pressure sealed reaction cylinder digests samples with integrated stirring — high stability, reliability, and sample-handling capacity — making it well suited to high-throughput laboratories.
The F10 model is also available in this series.
Features
- The color LCD touch-screen, which is strong functional, is equipped, simple interface for the user’s easy and convenient operation.
- Fully automatic digesting is designed, including automatic solvent inletting, heating, accurate temperature controlling, stirring, waste discharging, and cleaning can all be handled automatically, unattended operation.
- Automatically add reagents according to the number of samples to reduce the use cost.
- Comprehensive monitoring configuration, including reagent quantity monitoring, temperature monitoring and pressure monitoring.
- Efficient batch processing capacity — up to 30 samples per batch, high efficiency and reagent saving.
- F22 has a timing start function, which makes testing more convenient.
- F22 can be directly used in ordinary laboratory environment without fume hood.
- The filter bag technology is adopted, and the standard filter bag aperture is 25 μm. Optional 15 μm or 10 μm.
Specifications
| Temperature range | Ambient–100 °C |
|---|---|
| Sample size | 0.1–5.0 g |
| Measuring range | 0.1%–100% |
| Time consumption per determination | 120 min |
| Capacity per batch | Up to 30 samples simultaneously |
| Capacity per day | About 90–180 (8-hour working day, depending on fiber type) |
| Repeatability | RSD ≤3.0% |
| Determination result standard deviation | ≤4% |
| User-defined schemes | 250 sets |
| Solvent adding | Automated |
| Filter bag pore size | 25 μm standard (10 μm / 15 μm optional) |
| Safety requirement | Enclosed space, off-hand operation |
| Installation requirement | Routine laboratory environment, no cooling water needed |
| Power supply | AC 220 V, 50 Hz |
| Dimensions | 375×500×450 mm |
| Weight | 25 kg |
Applicable standards
ISO 6865ISO 16472AOAC 2002.04ISO 13906
Application fields
For crude fiber, acid detergent fiber (ADF), neutral detergent fiber (NDF), lignin and insoluble dietary fiber determination.
