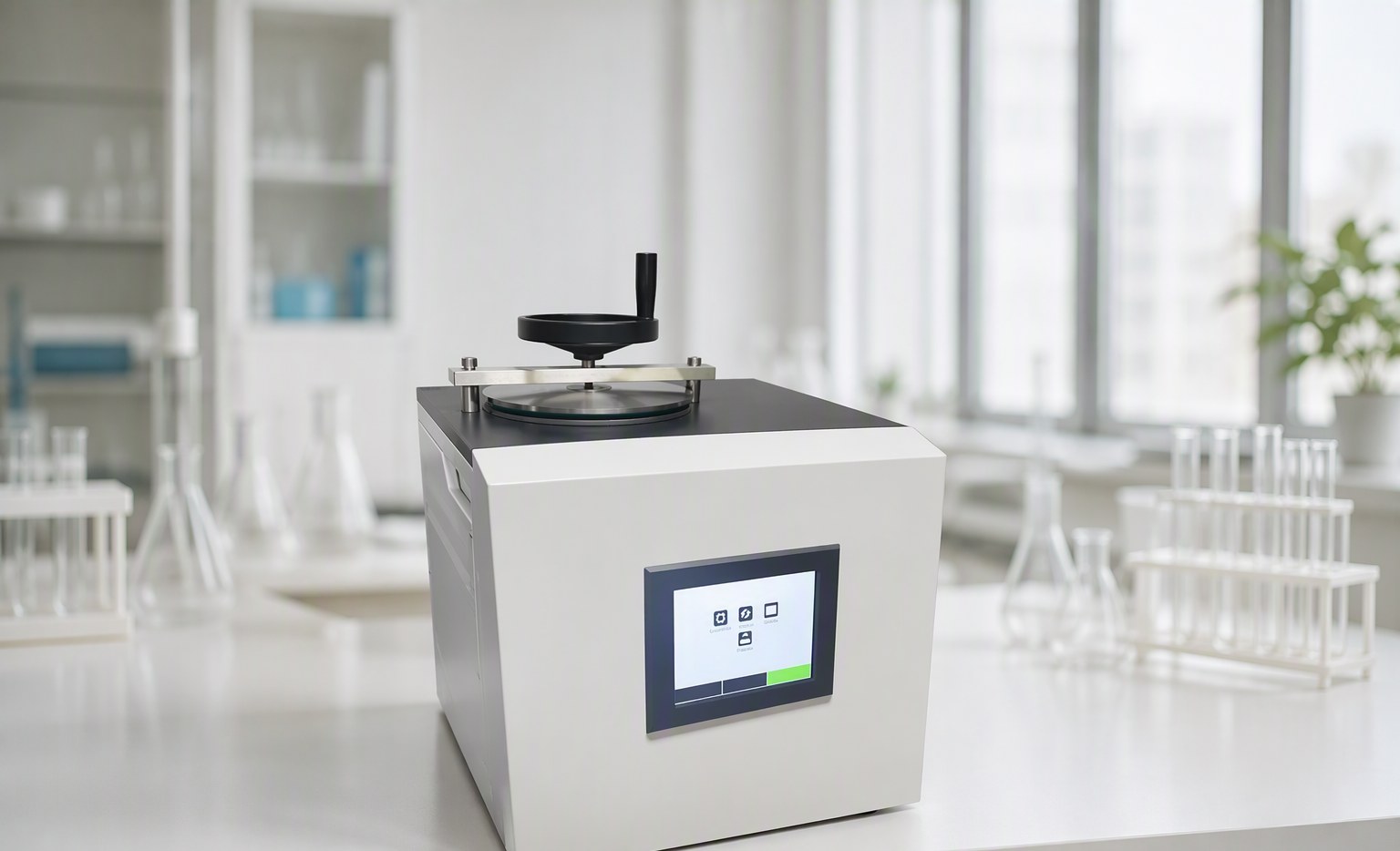

The F20 automatic filter-bag fiber analyzer replaces the crucible extraction method, eliminating its drawbacks: excessive labor and time, poor temperature control, residue loss, and safety risks for operators. For batch determination it delivers high efficiency, stable results, and lower reagent consumption — in a compact benchtop design with a high-pressure sealed reaction system.
The F10 model is also available in this series.
Features
- The color LCD touch-screen is equipped, simple interface for the user’s easy and convenient operation.
- Automatic digesting, manually inlet the solvent, function of heating and accurate temperature control, automatic stirring, waste discharging and cleaning could all be realized through the touch-screen..
Specifications
| Temperature range | Ambient–100 °C |
|---|---|
| Sample size | 0.1–5.0 g |
| Measuring range | 0.1%–100% |
| Time consumption per determination | 120 min |
| Capacity per batch | Up to 30 samples simultaneously |
| Capacity per day | About 90–180 (8-hour working day, depending on fiber type) |
| Repeatability | RSD ≤3.0% |
| User-defined schemes | No |
| Solvent adding | Manual |
| Filter bag pore size | 25 μm standard (10 μm / 15 μm optional) |
| Safety requirement | Enclosed space, off-hand operation |
| Installation requirement | Routine laboratory environment, no cooling water needed |
| Power supply | AC 220 V, 50 Hz |
| Dimensions | 375×500×450 mm |
| Weight | 25 kg |
Applicable standards
ISO 6865ISO 16472AOAC 2002.04ISO 13906
Application fields
For crude fiber, acid detergent fiber (ADF), neutral detergent fiber (NDF), lignin and insoluble dietary fiber determination.
