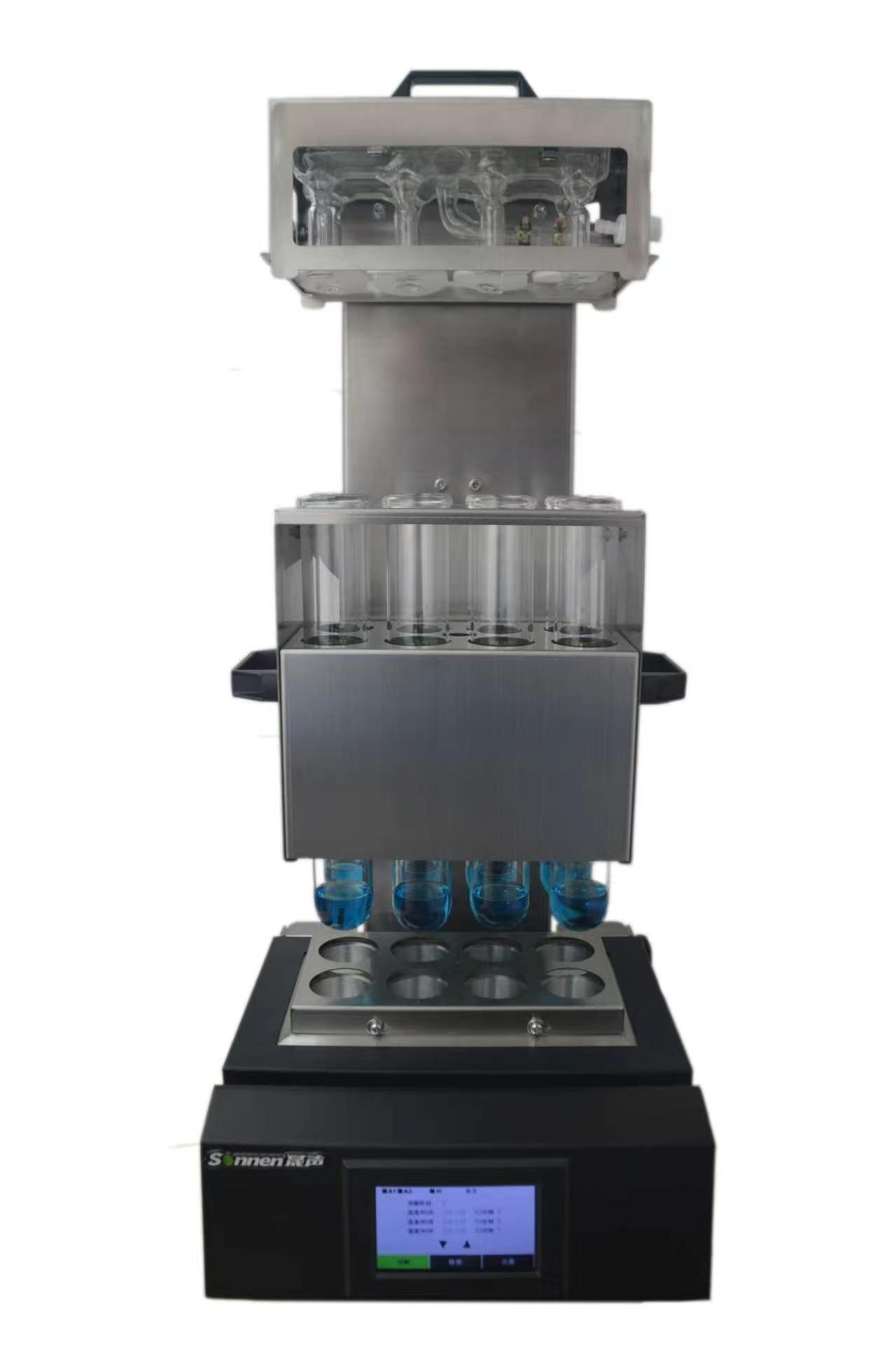

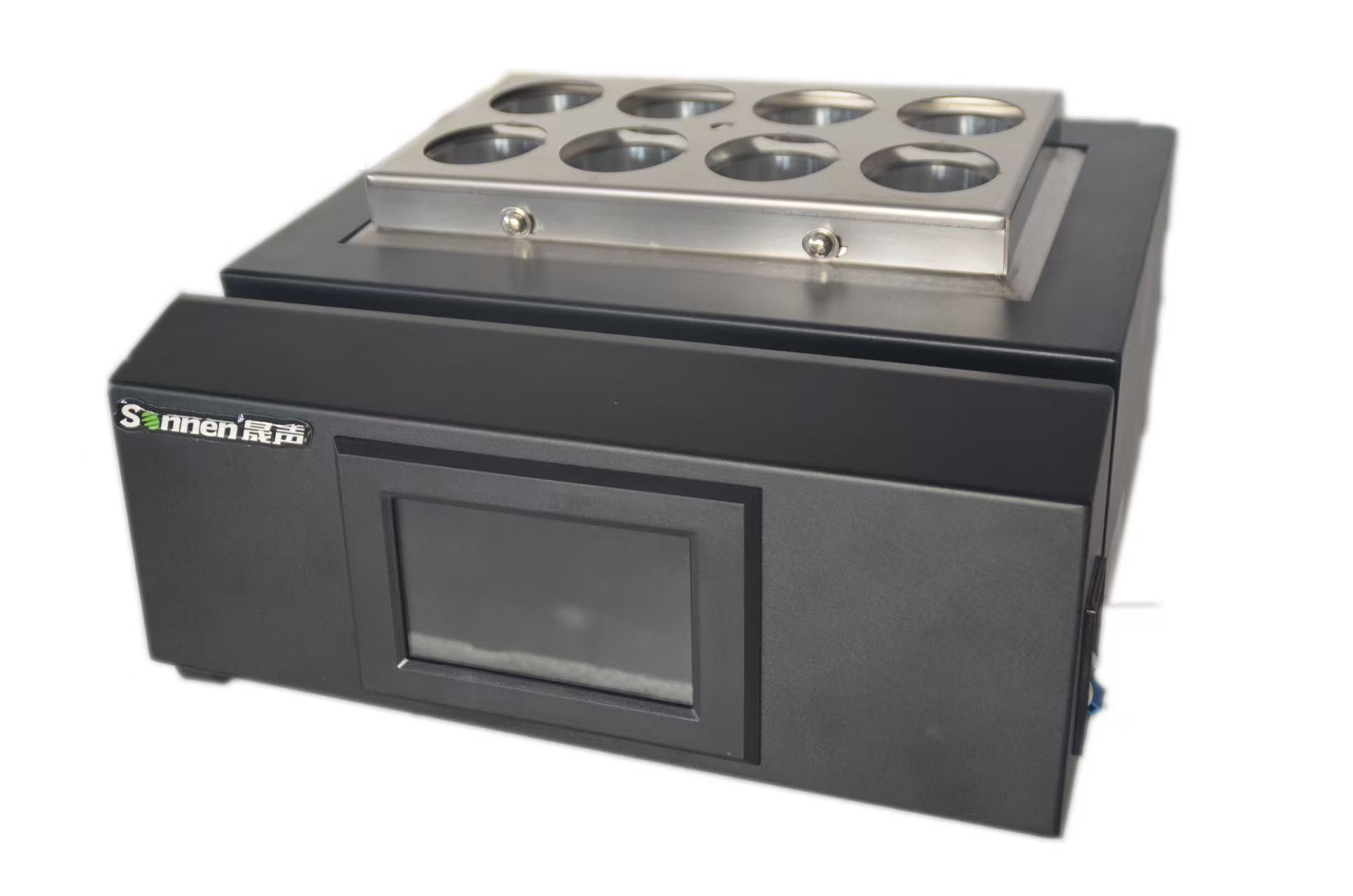

The Smart 08 is an eight-position aluminum-block digester running 300 mL digestion tubes, built for higher digestion efficiency and shorter digestion cycles in a compact footprint. With the optional automatic lifting rack and exhaust absorption manifold the system runs the full digestion cycle unattended — suited to laboratories with heavy sample-pretreatment workloads.
Features
- In 2007, Sonnen developed the first aluminum-module automatic digester in China, which is designed with fast and high-efficient digestion speed and intellectual temperature and time stepped-controlling digestion method. With its pretty and smart out-shape and the advantage of outstanding durability, Sonnen’s aluminum-module automatic digestor has rapidly won the market and reputation and are spoken highly by the end users, including China Agriculture University, Chinese Academy of Sciences, Chinese Academy of Agriculture Sciences, and other domestic and international famous enterprises. Since 2007, thousands of Sonnen’s aluminum-module automatic digestor have been purchased only replying on its public praise..
- Large color LCD touch screen.
- Digestion temperature and time could be set freely, and reservation function is available.
- From 1 to 21 heating-up stages can be set freely for the easy handling of the most complicated samples.
- Typical sample digestion parameters are built-in in the digestor.
- Stores up to 510 user-defined digestion programs for recall of validated methods at any time.
- Control interface of the automatic lifter is reserved (the automatic lifter is optional).
- Control interface of the off-gas absorber is reserved.
- Multi parameters setting is functional. In the setting menu of the digestion condition, lifting parameter and absorption parameter can be set at the same time to realize the system fully automatic operation.
- Over voltage, over current and overheating protection together ensure the safe operation.
- According to the actual requirements, different parts of the digester shell are adopted with different anti-corrosion treatments of passivating, Teflon painting, epoxy painting and etc.
Specifications
| Tube positions | 8 tubes |
|---|---|
| Tube volume | 300 ml |
| Sample size(solid) | ≤6g per sample |
| Sample size (liquid) | ≤25 ml per sample |
| Heating up time ( from 20°Cto 400°C) | 30 minutes |
| Temperature sensor resolution | 0.1°C |
| Temperature gradient | 1-21 stages, while time of each stage can be set from 0 to 999minutes. |
| Intellectual failure detection | Available |
| Power consumption | 1400W |
| Dimensions(mm) | 290×320×200 |
| Data storage | 510 user-defined digestion programs |
Application fields
Digestion of nitrogen and protein samples; COD digestion; digestion of total phosphorus, arsenic, etc. ; sample pre-treatment for heavy-metal determination (lead, copper, zinc, tin, etc. ).
Factory video
Factory footage. On-screen interface shown in Chinese.
