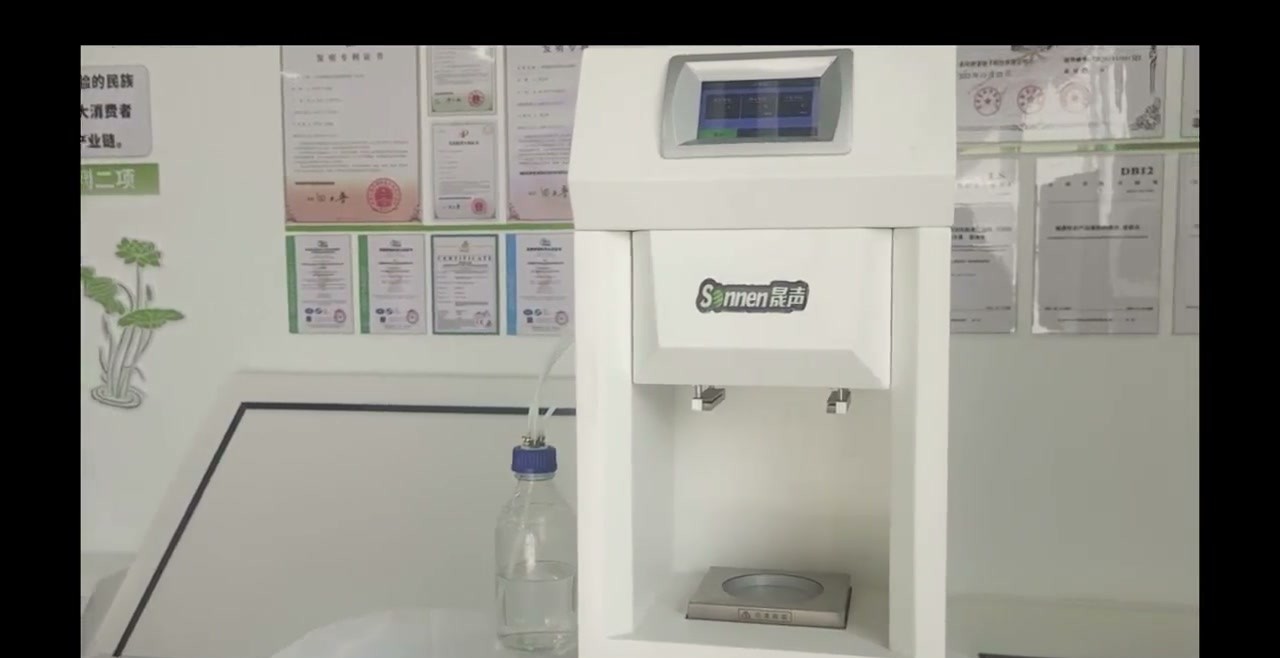

Fully automatic filter-bag fat extractor with automated solvent adding — covering the complete process of sealing, soaking, extraction and solvent recovery, for up to 15 samples per batch.
Features
- Automated solvent adding.
- Full process: sealing, soaking, extraction and solvent recovery.
- User-defined schemes: 250 sets.
- Repeatability RSD ≤1.0%.
Specifications
| Measuring range | 0.1–100% |
|---|---|
| Capacity per batch | Up to 15 |
| Sample size | 0.1–5 g |
| Temperature range | Ambient–105 °C |
| Solvent recovery | ≥90% |
| Solvent adding | Automated |
| User-defined schemes | 250 sets |
| Repeatability | RSD ≤1.0% |
Application fields
Total fat / crude fat determination in food, feed, cereals, meat and oilseeds by automated solvent extraction.
Related: H15 acid hydrolysis (sample prep) · A20 autosampler · GB3 fat test filter bags (consumable)
Factory video
Factory footage. On-screen interface shown in Chinese.
